- Item No. : 5811

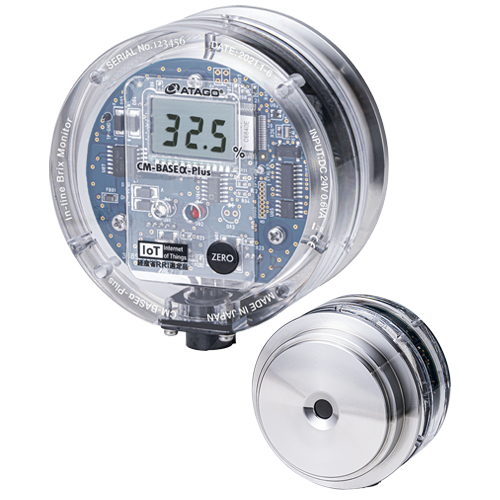

Atago CM-BASE alpha-Plus
In-line Brix-Monitor
Standard Standard
Easy operation with only one cable for power supply and data output. Optimized for automation of real-time concentration monitoring. The CM-BASEα-Plus transmits data via both 4-20mA signals and RS-232C. Provides increased range over the CM-BASEα model.
Specifications
| Model | CM-BASEα-Plus |
|---|---|
| Cat. No. | 5811 |
| Range | Brix : 0.0~93.0% |
| Resolution | Brix : 0.1% |
| Accuracy | Brix : ±0.5% |
| Temperature compensation | 10.0~95.0℃ |
| Output | RS-232C, DC 4~20mA |
| Power Supply | DC24V |
