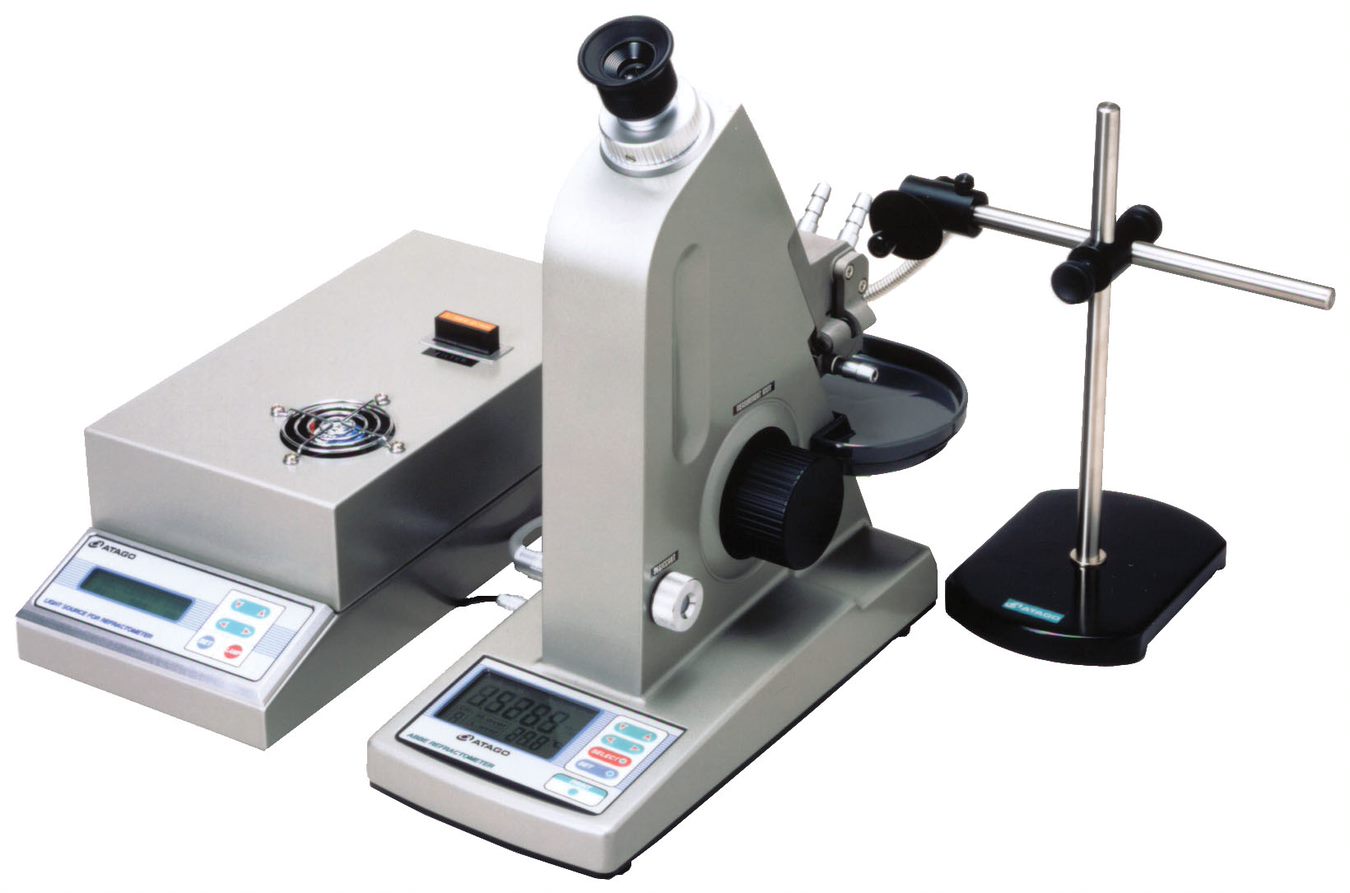

Atago DR-M2 - Multi-Wavelength Abbe Refractometer
Contact us for a quote
Refractive index or Abbe number (νd or νe) can be measured at different wavelengths ranging from 450 to 1,100nm. The DR-M2 digitally displays measurement result of refractive index or Abbe number on the LCD. Measurement can be achieved by matching the boundary line with the intersection point of the cross hairs. This refractometer is connectable with Digital printer DP-AD(B) (Optional).


Model DR-M2
Cat. No. 1410
Scale Refractive index
Abbe number
Range Refractive index 1.3278 to 1.7379 (Wavelength 450nm)
Refractive index 1.3000 to 1.7100 (Wavelength 589nm)
Refractive index 1.2912 to 1.7011 (Wavelength 680nm)
Refractive index 1.2743 to 1.6840 (Wavelength 1,100nm)
Minimum Indication Refractive index : 0.0001
Abbe number : 0.1
Accuracy Refractive index : ±0.0002
(With test piece at 500 to 650nm)
Measurement Temp. 5 to 50?C
(With circulating constant water bath)
Display Panel LCD
Light source Halogen lamp
Output For printer, DP-AD (B) (Optional)
Wavelength Range From 450 to 1100nm (with interference filters)
(For measurement at wavelengths ranging from 681 to 1100nm, the Near Infrared Ray Viewer (Optional is required)
Dimensions & Weight 13×29×31cm, 6.0kg (Refractometer)
15×33×11cm, 3.2kg (Light source unit)


· Lighting glass for film measurement : RE-6191

· Digital printer DP-AD (B)(Dot matrix printer) : Cat.No.3145

· Interference filter 589(D)nm : RE-3520

· Interference filter 486(F)nm : RE-3521

· Interference filter 656(C)nm : RE-3522

· Interference filter 546(e)nm : RE-3523

· Interference filter 480(F`)nm : RE-3524

· Interference filter 644(C`)nm : RE-3525

· Interference filter (select one wavelength) : RE-3526

· Interference filter 450 to 539nm : RE-3526-1

· Interference filter 540 to 680nm : RE-3526-2

· Interference filter 681 to 799nm : RE-3526-3

· Interference filter 800 to 1100nm : RE-3526-4

· Near-infrared ray viewer : RE-9119

· Eyepiece for polarizing : RE-1146

* Calibration Certificate : Contact an ATAGO representative for details.


· Main & secondary prism : RE-16500

· Illuminating lamp : RE-4170

· Pack of desiccant tablets : RE-8100
