Maassen Hydraulic Press MP5MD
Contact us for a quote
Maassen Hydraulic Press MP5MD
Contact us for a quote

Programmable power for small dies

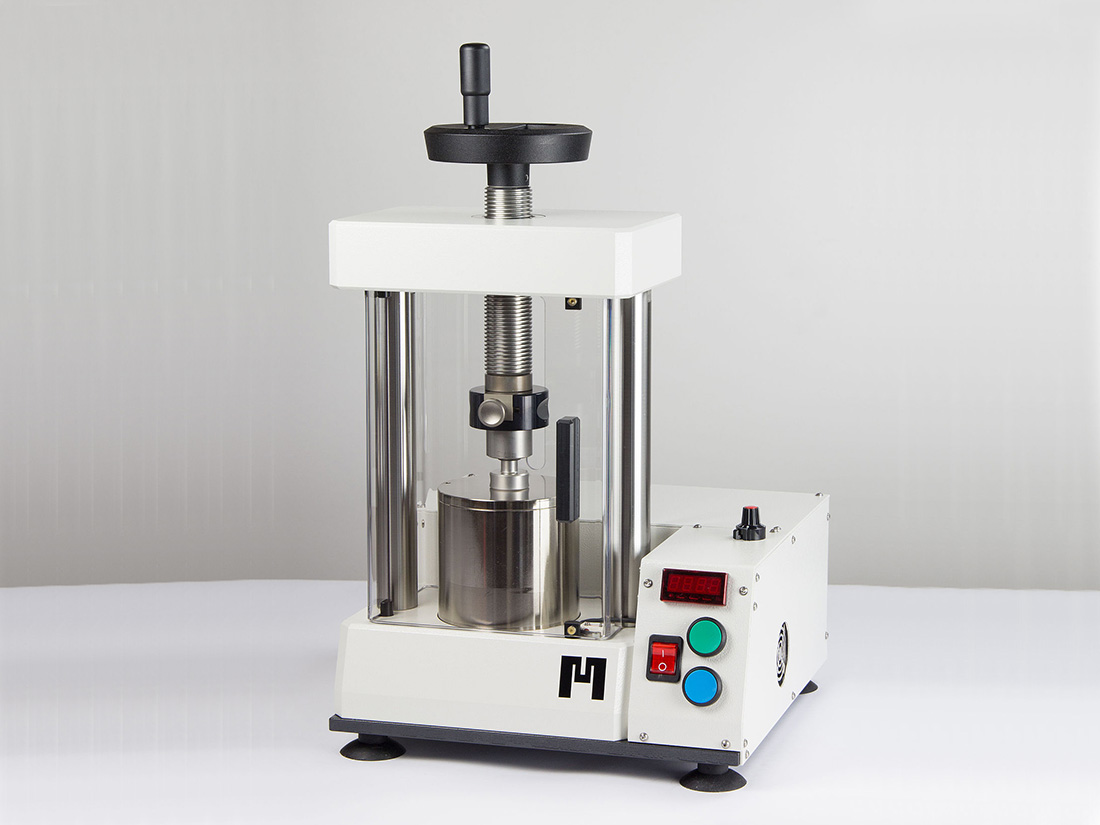

This compact laboratory press was especially designed for frequent and intense use of small die sets. The small electric hydraulic pump is made for precise load from 200 kg to 5 tons.



The pressure can be set in 0.01 tons steps at the digital display. The programmed load does not get lost when turning off the press. So it is perfectly suitable to reproduce the same press action with the same settings over and over again.



The press starts to work by pushing the green button, the blue button is for decreasing the load until the cylinder is back in his lowest position. The black rotary knob at the top of the metal cover adjusts the pump speed to minimize the overload for best precision and sample protection. The press can keep the load for several hours. If the load drops down to a predefined limit, it will automatically start again.



It also includes a safety switch at the front cover to interrupt the press action until it’s closed.





MP5MD

Dimension (H min / max x W x D)

436/538 x 370 x 300mm

Width Between Pillars

150mm

Min / Max Inner Height

52mm / 142mm

Display / Resolution

Digital four digit, 0.01 ton (=10kg)

Spindle Dia.

35mm

Spindle Way Max.

102mm

Cylinder Dia. / Way

105mm / 22mm

Weight Net

40kg

Power

110-230V / 50-60Hz

Order Number

54MP5MD
